Concentricbutterfly Valve

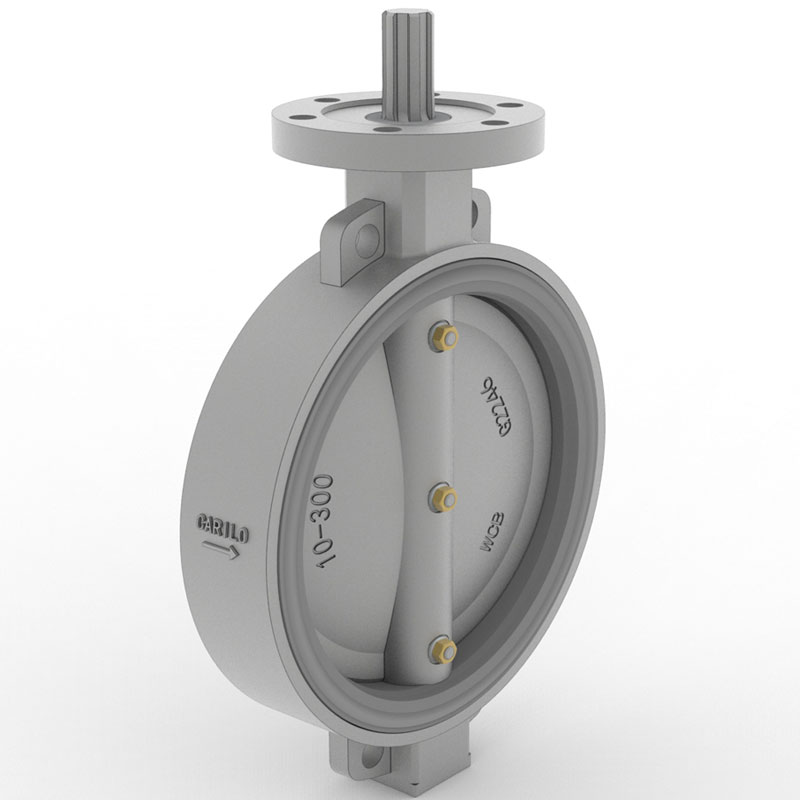

A butterfly valve is a rotary valve (quarter turn valve) using a disc as the closure member. Concentric butterfly valve is available with wafer style, lugged and double-flanged body types. This along with comparably short face-to-face dimension makes them versatile and cost-efficient solutions for a variety of on/off and control applications.









Product Range:

●Size:NPS 2’’ – NPS96’’/DN50 – DN2400

●Rating:Class 150/PN10 – PN16

●End connection: Double flange, wafer, lug

●Material: WCB, WCC, LCB, CF8, CF8M, CF3, CF3M, 4A, 5A, 6A, CN7M, CF8C, etc.

●Operation: Lever, gear, electric actuator, pneumatic Actuator





Features:

●Concentric design

●Bi-directional

●Zero leakage

●Low torque

●Blow out proof stem design

●Easy to operate & maintain

●ISO 5211 top flange

●Extended stem if required





Applicable standards:

●Design& manufacture: API 609/DIN 3354

●Face to face:API 609/EN 558.1

●Flange ends: ASME B16.5/ ASME B16.47/EN 1092-1

●Inspection and test: API 598/EN 12266





Applications:

●Water and waste water

●Refining cooling waters

●Oil and gas

●Petrochemicals

●ESD service

●Industrial gas

●Power generation
