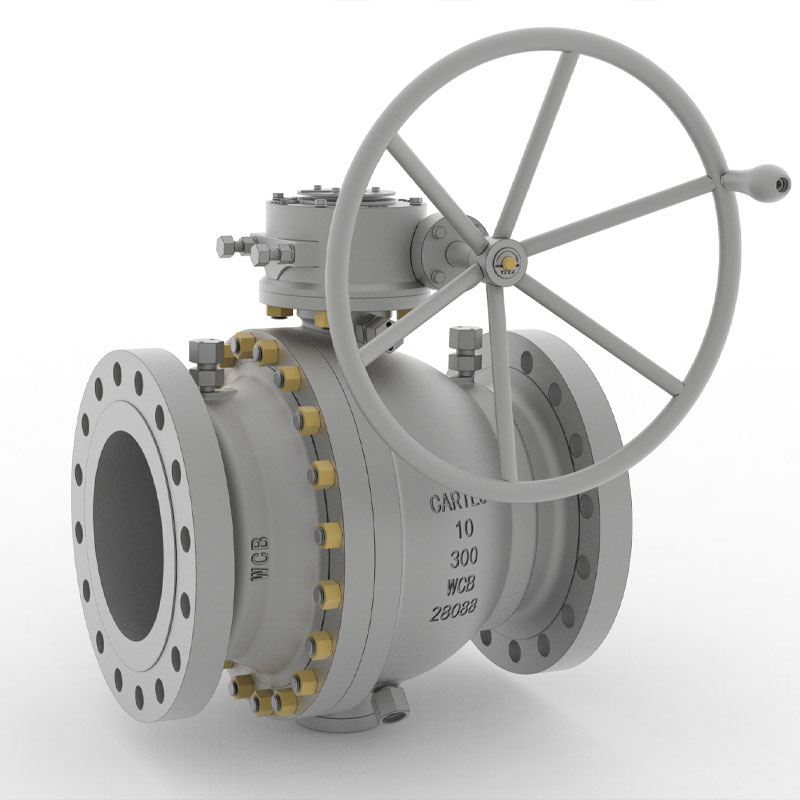

Casting steel trunnion ball valve



CARILO VALVE has professional experience in valve industry. Our products are characterized by unique design, professional technicians, strict quality control and considerable after sales.







Product Range:

●Size: NPS 2’’ – NPS 40’’/DN50~DN1000

●Rating: Class 150 – Class 900/PN16~PN150

●Material: WCB, WCC, LCB, CF8, CF8M, CF3, CF3M, 4A, 5A, 6A, CN7M, CF8C, Bronze C95800, etc.

●Operation: Lever, gear, electric actuator, pneumatic Actuator





Design descriptions:

●Full port or reduced port

●Two or three pieces

●RF, RTJ, BW

●Side entry or top entry

●Bolted bonnet, split body

●Soft seat or metal to metal seat

●Anti statics device

●Blow-out proof stem

●Fire safe

●Double Block & Bleed (DBB), Double Isolation &Bleed (DIB)

●ISO 5211 Mounting pad

●NACE requirement

●Extended stem if required

●Fugitive emission if required

●Locking device (manual operation)





Applicable standards:

●Design& manufacture: API 6D/API 608/DIN 3357/BS 5351

●Face to face: API6D/ASME B16.10/DIN 3202/EN 558.1

●Flange ends: ASME B16.5/ASME B16.47/EN 1092-1

●Butt-weld ends: ASME B16.25/DIN 3239/EN 12627

●Inspection and test: API 598/API 6D/DIN 3230/EN 12266

●Fire safe: API 607/API 6FA

●Fugitive emission: ISO 15848-2/ISO 15848-1
